AWX Mixing Console
The AWX is inspired by a world-class mixing console that brought the large-format studio to the small home studio. It is a split design with a ton of routing capabilities and adequate on-board processors.
Documentation
Videos
Additional Resources
* All product names used are trademarks of their respective owners, and in no way constitutes an association or affiliation with SoundcheckPro. The SSL and/or Solid State Logic trademarks are solely used to identify the products whose sound was studied during SoundcheckPro development. The trademarks SSL and Solid State Logic are owned by Red Lion 49 Limited.

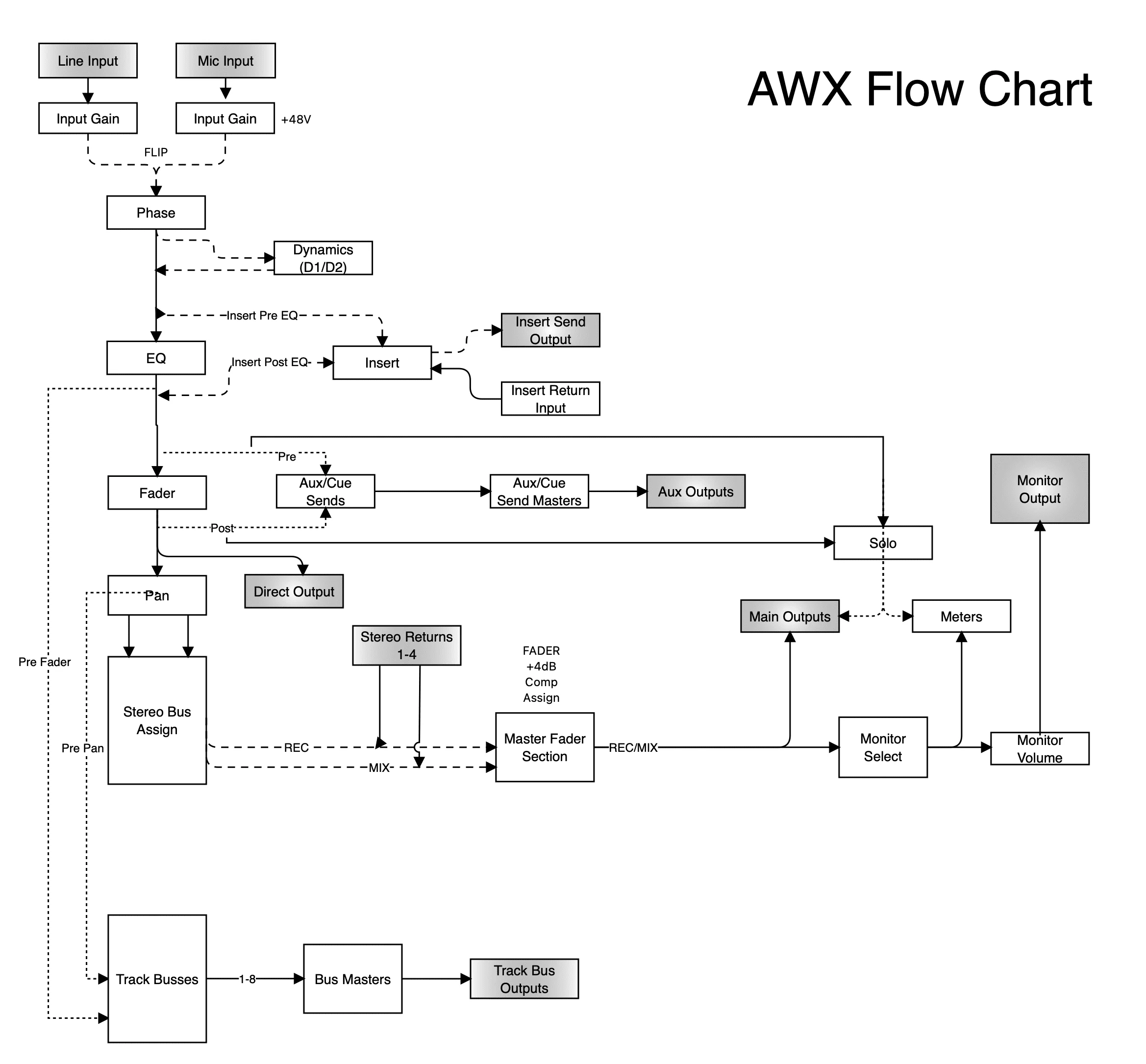

Signal Flow Chart Diagram
Not everything flows as it may appear on the face of the mixer. Get to know the inner workings and order of operations for the AWX console. Begin at the Mic or Line Inputs and follow the signal flow of the channels and master section.
Monitor vs Channel Path
Visualize and engage with the audio signal paths like never before. Route any channel to and/or from a multitrack recorder. Distribute channels on the console as you wish. The console is flexible to handle multiple workflows.
Additional Specs
| Function | |
| Mic Input Gain | Mic Input Gain |
| Line Input Gain | Line Input Gain |
| Input Section Toggles | |
| EQ Knobs | HF-Freq, HF-Gain, HMF-Freq, HMF-Gain, HMF-Q, LMF-Freq, LMF-Gain, LMF-Q, LF-Freq, LF-Gain |
| EQ Toggles | EQ-In |
| Inserts | Insert-Toggle , Insert-PreEQ |
| Pan | Pan (c) |
| Channel Aux / Send | *6 sends, 4 mono, 2 stereo* Enable , Send Level (shared) |
| Channel Fader Section | Rec, Mix, Select |
| Channel Sub-Groups / Track-Bus | *8 track busses* Bus Enable, Pre, Pan |
| Master AuxSend Levels | *6 sends* Send Level, Cue Send Level, AFL |
| Master Sub Groups | *8 track busses* Bus Send Level, AFL |
| Master Monitor Section | Master Fader, Monitor Source Select, Monitor Volume, Bus Assig Functions |
| Master Section FX Processing | * 3 dynamic modules* Compressor, Gate, Stereo Bus Compressor |
| Stereo Return | *4 Returns* Level, Balance, Cue Busses, Main Busses, Mono, Width |
