Maggie Mixer

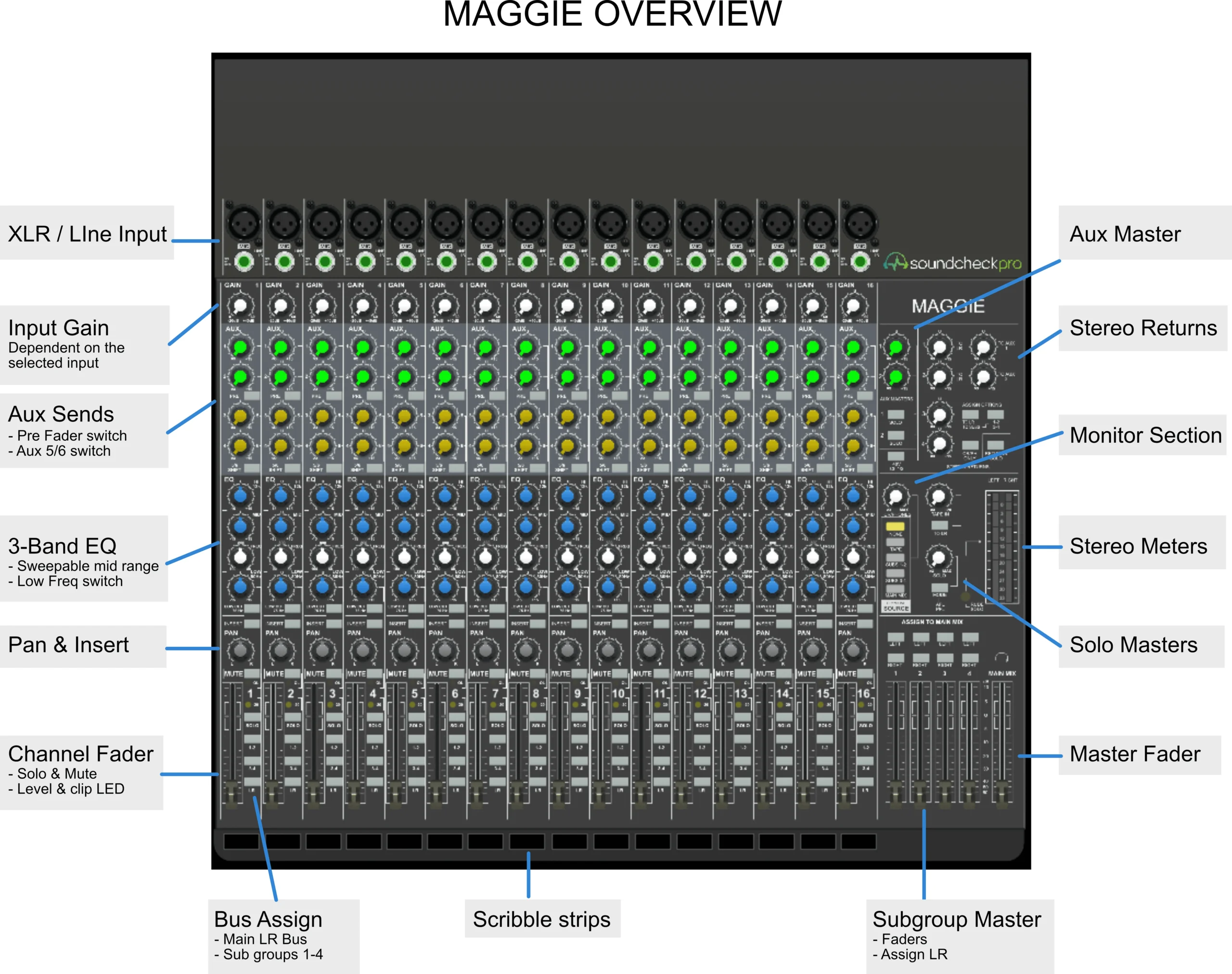

Maggie is a split-design mixer that contains majority of the destinations found in signal flow. Inspired by one of the most common-style mixers seen in small home studios, event halls and most importantly education! When you learn Maggie, you are learning with the most used workflow in education practices.
Documentation
Resources
Videos
Additional Resources
- 1604VLZ Overview
- 1604 Subs to Mains
- 1604 Overview (Spanish/Portugese?)
- 1604 Extended Overview (German)
- 1604 SAE Lesson
* All product names used are trademarks of their respective owners, and in no way constitutes an association or affiliation with SoundcheckPro. Mackie or other mentioned trademarks are solely used to identify the products whose sound and workflow was studied during SoundcheckPro development.
Exercises
Ready made for students to practice at home!
The format breaks down as follows:
- Objectives
- Reading / Videos
- Questions
- SoundcheckPro Assignments
- Glossary Terms
Signal Flow Chart Diagram
Not everything flows as it may appear on the face of the mixer. Get to know the inner workings and order of operations for the Maggie. Begin at the Mic or Line Inputs and follow the signal flow of the channels and master section.
Videos: Getting Started
Hit the ground running with the Maggie mixer learning all of it's functions:
- Session Window Overview
- Maggie Full Overview Deep Dive
- Setting Mixer Levels
- Main Mix Output
- and more!
Specs
Channel Count: 4 & 16
| Function | |
| Mic Input Gain | Input Gain |
| Line Input Gain | x |
| Input Section Toggles | x |
| EQ Knobs | Hi-Gain, Mid-Gain, Mid-Freq, Low-Gain |
| EQ Toggles | Low-Cut |
| Inserts | Insert-Toggle |
| Pan | Pan |
| Channel Aux / Send | *6 Sends* Send Level, Pre-Fader, Shift |
| Channel Fader Section | Channel-Fader, Solo, Mute, LR |
| Channel Sub-Groups / Track-Bus | Bus 1-2, Bus 3-4, |
| Master AuxSend Levels | Aux1-Master, Aux2-Master, Aux1 Solo, Aux 2 Solo |
| Master Sub Groups | *4 Sub groups* Sub-%-Master, Sub-&-Master-L, Sub-&-Master-R |
| Master Monitor Section | Master Fader, Monitor Source Select, ControlRoom/Phone Volume, Solo Level, Solo Mode (AFL/PFL) |
| Master Section FX Processing | x |
| Stereo Return | *4 Returns* Return-%-Level, ToLR/ToSubs, Assign 1-2/3-4 To Aux 1, To Aux 2, Returns Solo |
